BRG0001

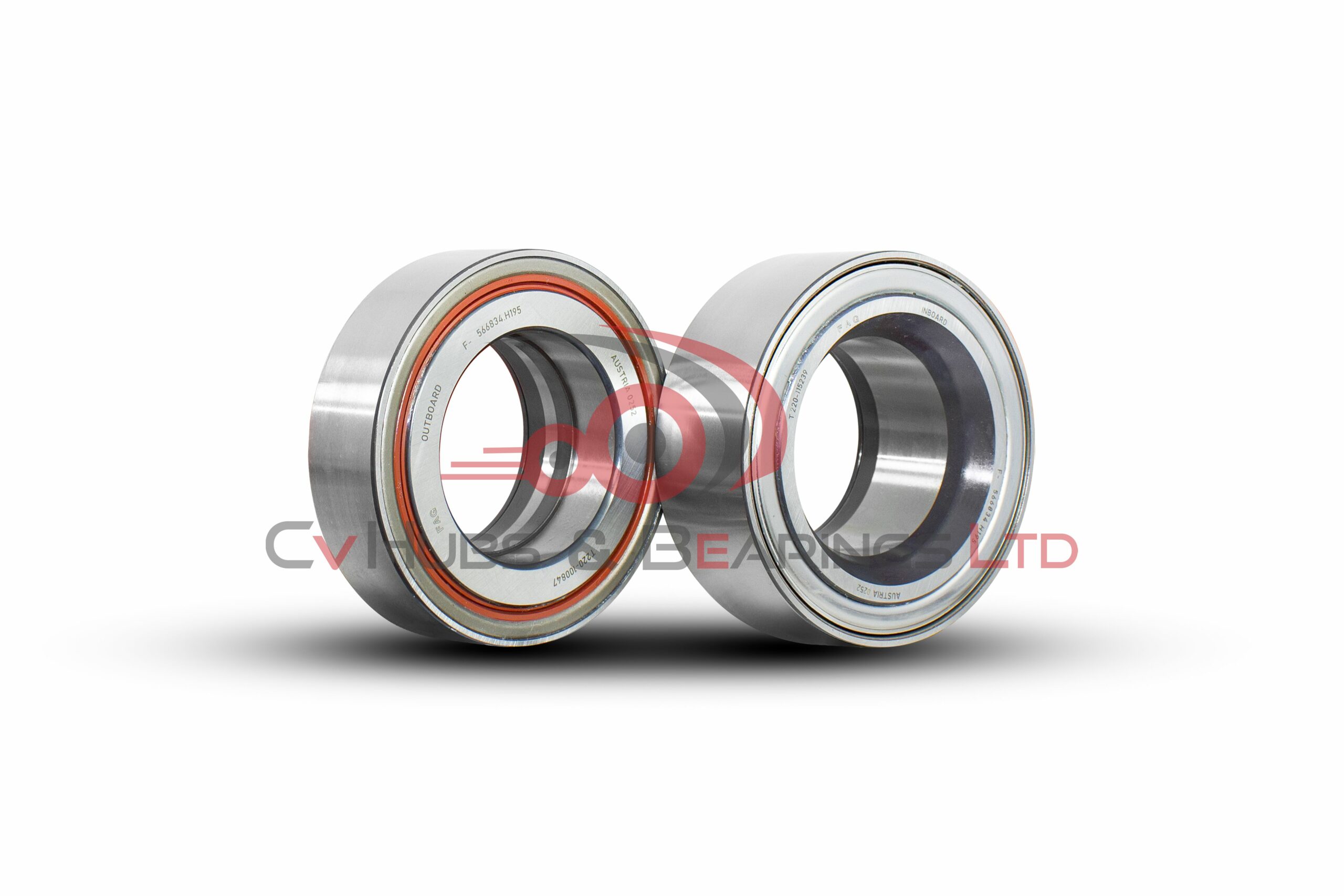

FAG Repair Insert Unit 566834.H195

  • ManufacturerFAG
  • Part NoBRG0001
  • OE Ref1801595
    566283.H195

Request a quote
Product Added to Quote Successfully.
View Quote

  • Next day delivery

  • Global Distribution

  • Export Shipping & Documentation

  • Palletised Logistics

Additional information

Weight 4.854 kg
Manufacturer

Bearing Warranty

Bearing Type

Inner Diameter 1

69.80mm
Outer Diameter 1

119.70mm
Width 1

48.82mm
Inner Diameter 2

70.00mm
Outer Diameter 2

124.70mm
Width 2

61.22mm

Any manufacturer or OE part numbers are listed for cross reference and identification purposes only and in no way imply that this is a genuine part. As models can vary please check with your vehicle registration or chassis number if you are unsure of the OE number.

Description

The FAG repair insert unit (RIU) is a repair solution developed by Schaeffler for the garage. It consists of two preassembled taper roller bearings that are joined by means of a retaining ring after installation. The FAG RIU is lubricated for life and sealed against contamination. OE Reference: 1801595 – 566283.H195
